Types
|
Details
|
Description
|
Product form
|
Product form
|

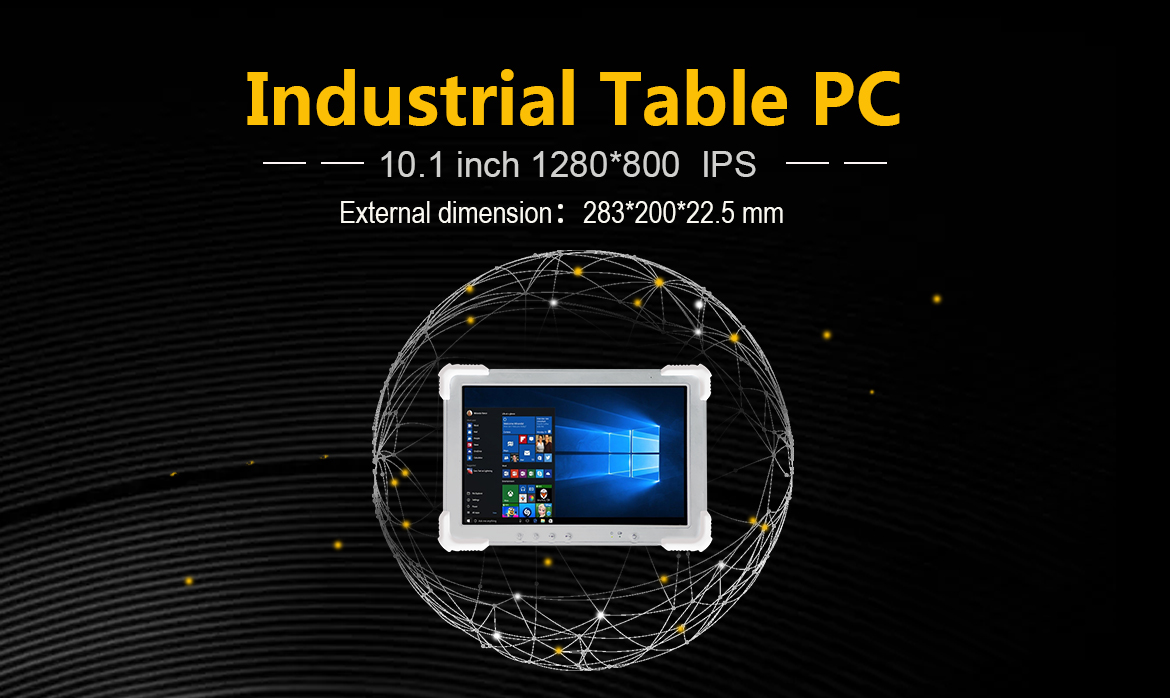

10.1 inch Industrial Tablet PC
|
External dimension
|
283*200*22.5 mm
|
LCD
|
Screen Size
|
10.1 inch
|
Screen resolution
|
1280*800 IPS 16:10
|
TP
|
Touch Screen
|
Capacitive touch screen
|
System hardware configuration
|
Types
|
Details
|
Description
|
CPU
|
type
|
N2930
|
RAM
|
DDR3
|
DDR3 8G
|
SSD
|
SSD
|
mSATA 128G
|

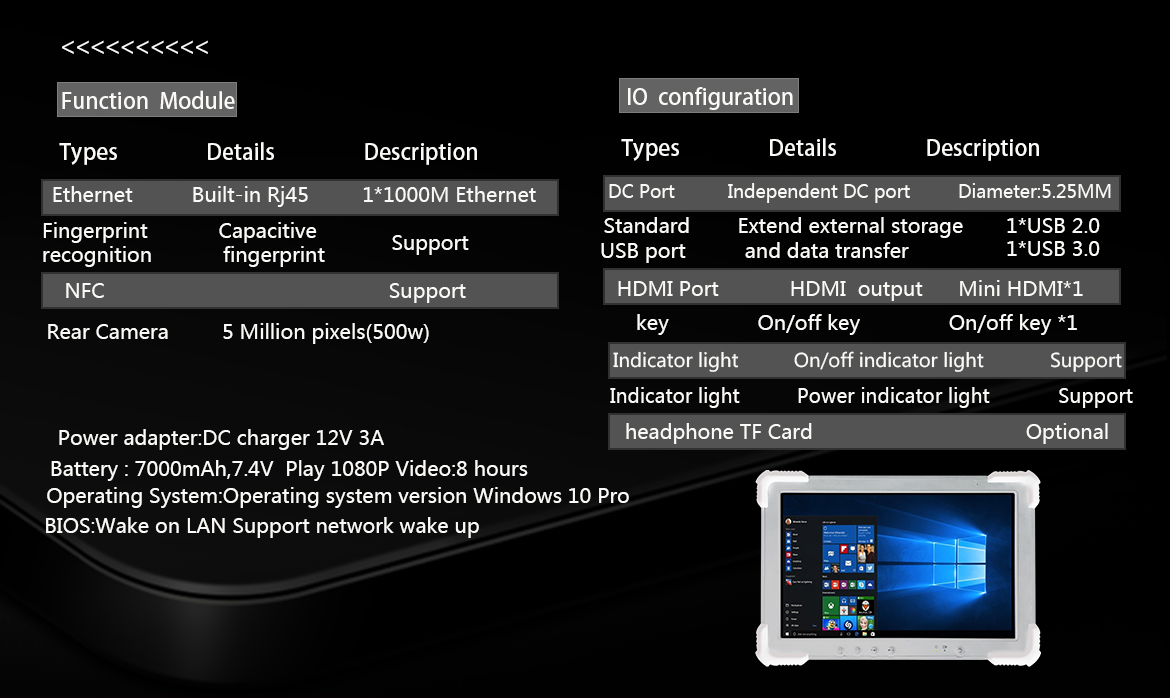

Function module
|
Types
|
Details
|
Description
|
Ethernet
|
Built-in Rj45
|
1 * 1000M Ethernet
|
Fingerprint recognition
|
Capacitive fingerprint
|
Support
|
NFC
|
|
Support
|
Rear Camera
|
5 Million pixels (500w)
|
Support
|
Wi-Fi
|
|
Support
|

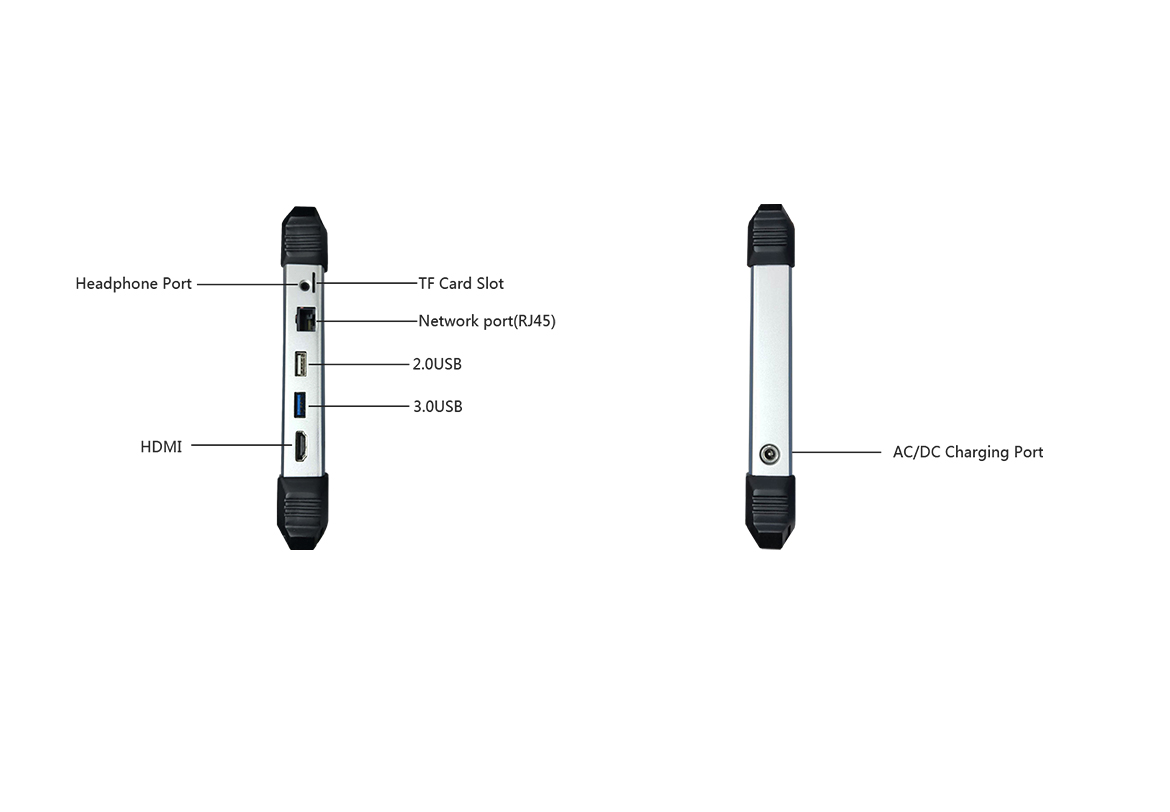

IO configuration
|
Types
|
Details
|
Description
|
Standard USB port
|
Extend external storage and data transfer
|
1*USB 2.0 1*USB 3.0
|
DC Port
|
Independent DC port
|
Diameter:5.25MM
|
HDMI Port
|
HDMI output
|
Mini HDMI*1
|
key
|
On/off key
|
On/off key *1
|
Indicator light
|
On/off indicator light
|
Support
|
Indicator light
|
Power Indicator Light
|
Support
|
Headphone
|
|
Optional
|
TF Card
|
|
Optional
|
Charging Specification
|
Types
|
Details
|
Description
|
Power adapter
|
DC charger
|
12V 3A
|
Battery
|
7000 mAh, 7.4V
|
Playing 1080P video: 8 hours
|
Software Configuration
|
Types
|
Details
|
Description
|
Operating System
|
Operating system version
|
Windows 10 Pro
|
BIOS
|
Wake on LAN
|
Support network wake up
|
Other Configuration
|
Types
|
Details
|
Description
|
Case material
|
Aluminum alloy
|
Aluminum alloy
|
Heat dissipation
|
No Fan
|
No fan heat dissipation
|
Weight
|
|
1.1 kgs
|
